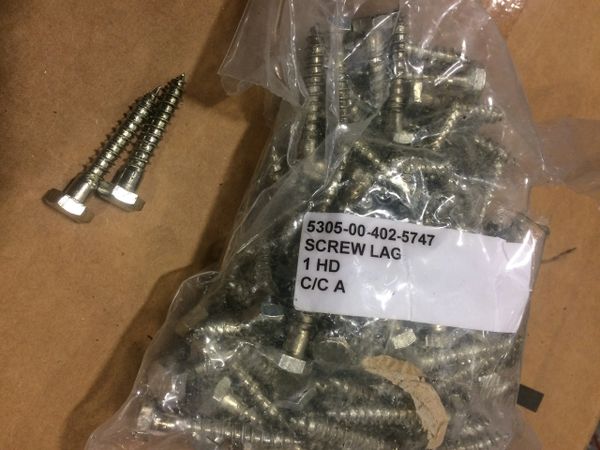

1 BOX OF 100 LAG SCREWS 1-1/2", 5305-00-402-5747 NEW
$10.00
1 BOX OF 100 LAG SCREWS 1-1/2", 5305-00-402-5747 NEW
PART NUMBER: MS16992-503
NSN: 5305-00-402-5747
E-230 #2
| AASB | FASTENER LENGTH | 1.500 INCHES NOMINAL |
| AASK | HEAD STYLE | HEXAGON |
| AASU | HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| AATB | WIDTH BETWEEN FLATS | 0.425 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| AATN | SHOULDER DIAMETER | 0.237 INCHES MINIMUM FIRST SHOULDER AND 0.260 INCHES MAXIMUM FIRST SHOULDER |
| AATX | SHOULDER LENGTH | 0.094 INCHES MINIMUM FIRST SHOULDER |
| CQBC | MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| CQFM | HARDNESS RATING | 60.0 ROCKWELL B MINIMUM OVERALL |
| CRGF | NONMACHINE THREAD STYLE | GIMLET POINT (TYPE A, AB OR BA) |
| CTYF | NONMACHINE NOMINAL THREAD DIAMETER | 0.250 INCHES |
| CWYB | SHOULDER SHAPE | ROUND FIRST SHOULDER |
| MATT | MATERIAL | STEEL OVERALL |
| SFTT | SURFACE TREATMENT | ZINC OVERALL |
| STDC | SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A153-60 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
