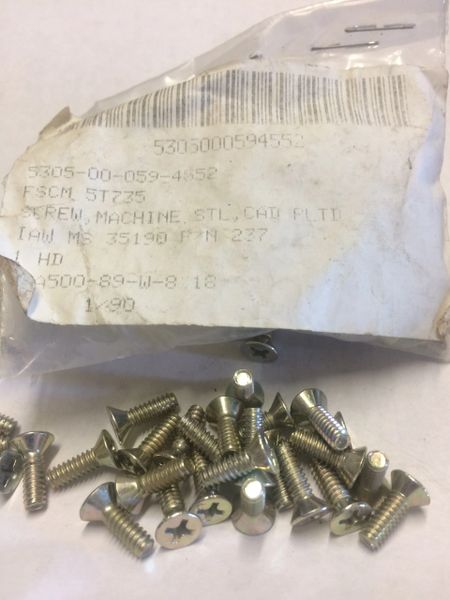

1 PKG OF 100 SCREWS #6 - 32, MS35190-237, 5305-00-059-4552 NOS
$5.00
1 PKG OF 100 SCREWS #6 - 32, MS35190-237, 5305-00-059-4552 NOS
PART NUMBER: MS35190-237
NSN: 5305-00-059-4552
NOS
| AAJD | THREAD CLASS | 2A |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| AASA | THREAD LENGTH | 0.262 INCHES MINIMUM AND 0.355 INCHES MAXIMUM |
| AASB | FASTENER LENGTH | 0.407 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| AASK | HEAD STYLE | FLAT COUNTERSUNK |
| AASL | HEAD DIAMETER | 0.244 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| ABQZ | INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| AHYM | NOMINAL THREAD DIAMETER | 0.138 INCHES |
| CMLP | THREAD QUANTITY PER INCH | 32 |
| CQBC | MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| CRSQ | COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| CYAU | SCREW MATERIAL | STEEL COMP 1011 OR STEEL COMP 1013 OR STEEL COMP 1010 |
| THSD | THREAD SERIES DESIGNATOR | UNC |
| ZZZT | NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2C STYLE |
