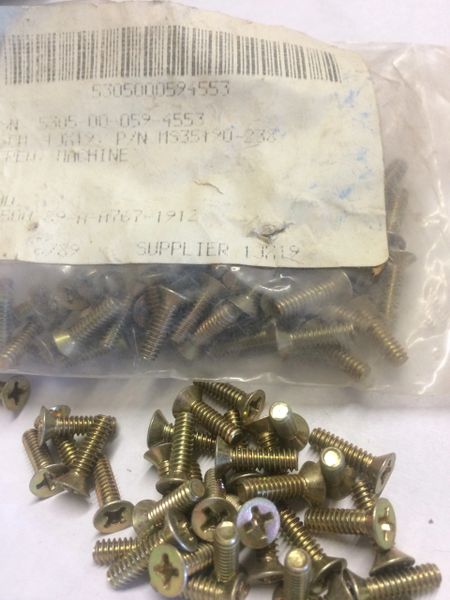

1 PKG OF 100 SCREWS #6 - 32, MS35190-238, 5305-00-059-4553 NOS
$5.00
1 PKG OF 100 SCREWS #6 - 32, MS35190-238, 5305-00-059-4553 NOS
PART NUMBER: MS35190-238
NSN: 5305-00-059-4553
NOS
| AAJD | THREAD CLASS | 2A |
| AAJF | THREAD DIRECTION | RIGHT-HAND |
| AASA | THREAD LENGTH | 0.438 INCHES NOMINAL |
| AASB | FASTENER LENGTH | 0.500 INCHES NOMINAL |
| AASK | HEAD STYLE | FLAT COUNTERSUNK |
| AASL | HEAD DIAMETER | 0.244 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| ABQZ | INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| AHYM | NOMINAL THREAD DIAMETER | 0.138 INCHES |
| CMLP | THREAD QUANTITY PER INCH | 32 |
| CQBC | MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| CRSQ | COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| CYAU | SCREW MATERIAL | STEEL |
| CYAW | SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OR ASTMA108 ASSN STD SINGLE MATERIAL RESPONSE |
| CYBA | SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| CYBE | SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OR MIL-C-81562,TYPE 2 CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE |
| THSD | THREAD SERIES DESIGNATOR | UNC |
| ZZZT | NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2C STYLE |
 |
