100 CADMIUM #10 - 24 TPI SCREWS MS24693CB70, 5305-00-054-4997 NOS
$5.00

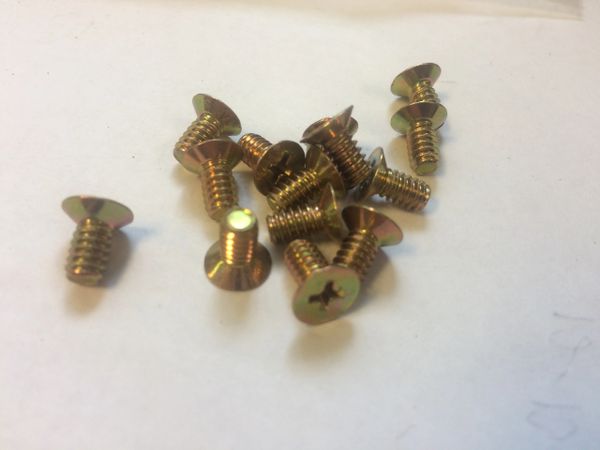

1 BOX OF 100 CADMIUM COATED #10 - 24 TPI SCREWS MS24693CB70, 5305-00-054-4997 NOS
PART NUMBER: MS24693CB70
NSN: 5305-00-054-4997
NOS
(MID BLDG)
| THREAD CLASS | 2A | |
| THREAD DIRECTION | RIGHT-HAND | |
| THREAD LENGTH | 0.209 INCHES MINIMUM | |
| FASTENER LENGTH | 0.375 INCHES NOMINAL | |
| HEAD STYLE | FLAT COUNTERSUNK | |
| HEAD DIAMETER | 0.333 INCHES MINIMUM AND 0.385 INCHES MAXIMUM | |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 | |
| NOMINAL THREAD DIAMETER | 0.190 INCHES | |
| THREAD QUANTITY PER INCH | 24 | |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH | |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM | |
| SCREW MATERIAL | COPPER ALLOY | |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-613 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE | |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE | |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL3 FED SPEC SINGLE TREATMENT RESPONSE | |
| THREAD SERIES DESIGNATOR | UNC | |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE OR 3C STYLE |
