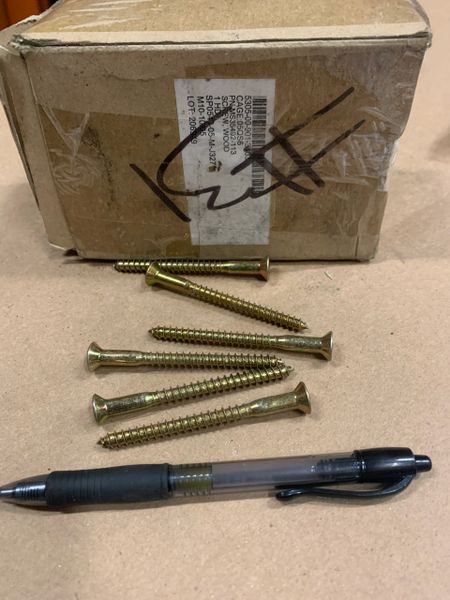

100 WOOD SCREWS MS35492-113, 5305-00-901-3103 NOS
$25.00
100 WOOD SCREWS MS35492-113, 5305-00-901-3103 NOS
PART NUMBER: MS35492-113
NSN: 5305-00-901-3103
NOS
| FASTENER LENGTH | 2.906 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| HEAD STYLE | FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.437 INCHES MINIMUM AND 0.491 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | CROSS RECESS TYPE 1 |
| NONMACHINE THREAD STYLE | GIMLET POINT (TYPE A, AB OR BA) |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.242 INCHES |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL AND CHROMATE OVERALL OR ZINC OVERALL AND CHROMATE OVERALL |
E-204 #9
