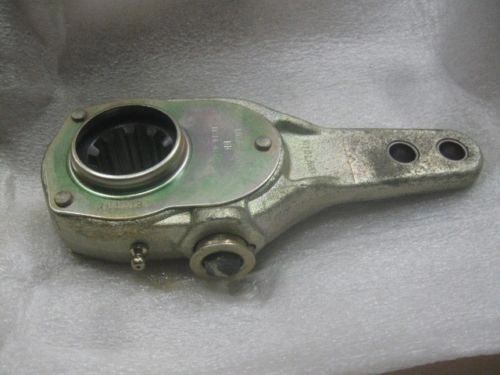

BRAKE SLACK ADJUSTER N21153B KN47081 8336779, 2530-00-372-4100 NOS
$25.00
BRAKE SLACK ADJUSTER N21153B KN47081 8336779 NOS
NSN:2530-00-372-4100
ADJUSTMENT TYPE
SINGLE ARM
SINGLE ARM
CONNECTING ARM CENTER TO CENTER DISTANCE BETWEEN SPLINE HOLE AND CONNECTION
HOLE 5.000 INCHES
MINIMUM AND 6.000 INCHES MAXIMUM
CONNECTING ARM DESIGN
STRAIGHT
STRAIGHT
CONNECTING ARM HOLE BUSHING INCLUDED
CONNECTING ARM HOLE QUANTITY 2
CONNECTING ARM THICKNESS 0.531 INCHES NOMINAL
HOLE DIAMETER
0.501 INCHES MINIMUM AND 0.503 INCHES MAXIMUM
0.501 INCHES MINIMUM AND 0.503 INCHES MAXIMUM
LOCKING DEVICE TYPE
SPRING LOADED BALL
SPRING LOADED BALL
LUBRICATION PROVISION
FITTING
FITTING
MAJOR DIAMETER
1.499 INCHES NOMINAL
1.499 INCHES NOMINAL
MINOR DIAME
TER 1.214 INCHES
NOMINAL
SCREW THREAD SERIES DESIGNATOR NPT
SHAPE
STRAIGHT
STRAIGHT
SPLINE QUANTITY
10
10
SPLINE TYPE
STRAIGHT SPLINE
STRAIGHT SPLINE
THREAD DIRECTION
RIGHT-HAND
RIGHT-HAND
THREAD SIZE DESIGNATOR
0.125-27
0.125-27
003724100 INV
