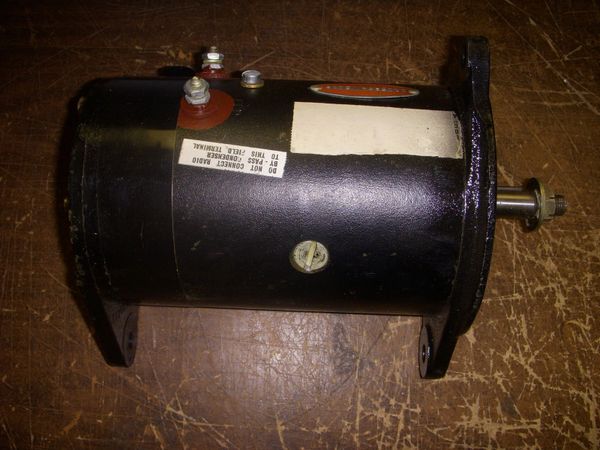

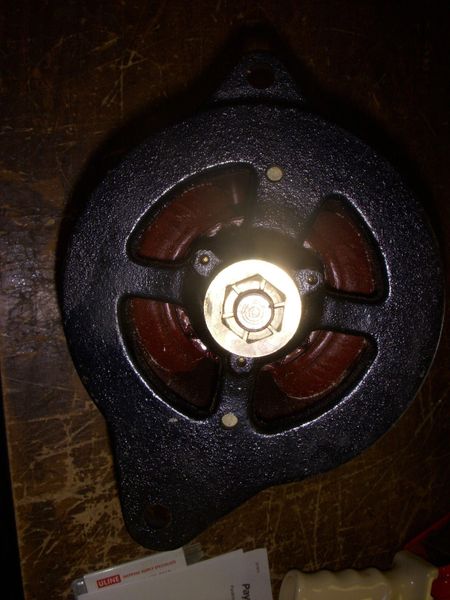

DELCO REMY OR SIMILAR BRAND 24V GENERATOR, 1105963 NOS
DELCO REMY OR SIMILAR BRAND 24V GENERATOR, 1105963 NOS
ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG 193.0
ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG 159.0
ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT 1625
BOTTOM MOUNTING HOLE DIAMETER 0.453 INCHES NOMINAL
DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET 7.243 INCHES MINIMUM AND 7.257 INCHES MAXIMUM
DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET 8.250 INCHES NOMINAL
DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER 3.875 INCHES NOMINAL
DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER 3.500 INCHES NOMINAL
DISTANCE FROM END TO KEYWAY CENTER 1.380 INCHES NOMINAL
ENVIRONMENTAL PROTECTION CORROSION RESISTANT AND FUNGUS RESISTANT
FSC APPLICATION DATA ENGINE ELECTRICAL SYSTEM,NONAIRCRAFT
FURNISHED ITEMS WOODRUFF KEY
GROUND POLARITY TYPE NEGATIVE OR POSITIVE
GROUNDING METHOD EXTERNAL
KEYWAY LENGTH 0.625 INCHES NOMINAL
KEYWAY WIDTH 0.125 INCHES NOMINAL
MAXIMUM OPERATING ALTITUDE RATING NOT RATED
MAXIMUM OUTPUT CURRENT RATING IN AMPS 10.0
MAXIMUM RATED ARMATURE SPEED IN RPM NOT RATED
MOUNTING STYLE 88.0
SECOND STEP DIAMETER 0.6684 INCHES MINIMUM AND 0.699 INCHES MAXIMUM
SHAFT DRIVE END STYLE 88.0
SHAFT ROTATION DIRECTION CLOCKWISE
SUBMERSIBILITY NONSUBMERSIBLE
THREAD CLASS 2A
THREAD DIAMETER 0.500 INCHES NOMINAL
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.720 INCHES NOMINAL
THREAD QUANTITY PER INCH 20
THREAD SERIES UNF
TOP MOUNTING HOLE DIAMETER 0.453 INCHES NOMINAL
UNTHREADED PORTION LENGTH 1.280 INCHES MINIMUM AND 1.340 INCHES MAXIMUM
VOLTAGE IN VOLTS 24.0
2920003715087
(1 IN E-239)
