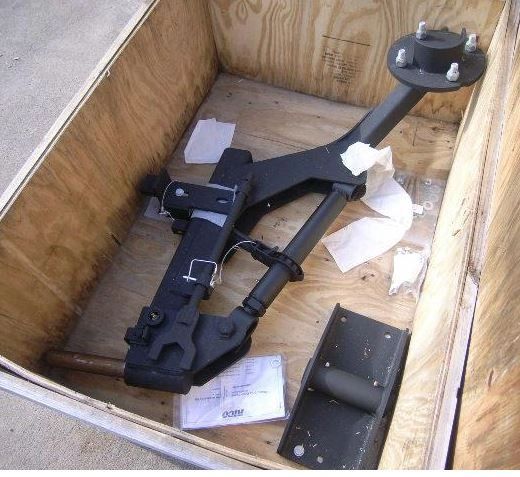

M1114 DROP DOWN SPARE TIRE CARRIER KIT STA007-05, 2590-01-525-1995 NOS

M1114 DROP DOWN SPARE TIRE CARRIER KIT STA007-05, 2590-01-525-1995 NOS

PART NUMBER:  STA007-05

NSN:  2590-01-525-1995

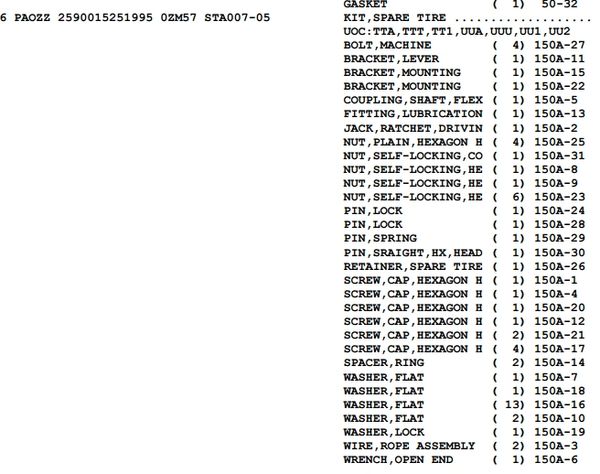

ITEMS LISTED BELOW ARE INCLUDED IN KIT:

DESCRIPTION, (QTY), FIGURE - #

BOLT,MACHINE ( 4) 150A-27

BRACKET,LEVER ( 1) 150A-11

BRACKET,MOUNTING ( 1) 150A-15

BRACKET,MOUNTING ( 1) 150A-22

COUPLING,SHAFT,FLEX ( 1) 150A-5

FITTING,LUBRICATION ( 1) 150A-13

JACK,RATCHET,DRIVIN ( 1) 150A-2

NUT,PLAIN,HEXAGON H ( 4) 150A-25

NUT,SELF-LOCKING,CO ( 1) 150A-31

NUT,SELF-LOCKING,HE ( 1) 150A-8

NUT,SELF-LOCKING,HE ( 1) 150A-9

NUT,SELF-LOCKING,HE ( 6) 150A-23

PIN,LOCK ( 1) 150A-24

PIN,LOCK ( 1) 150A-28

PIN,SPRING ( 1) 150A-29

PIN,SRAIGHT,HX,HEAD ( 1) 150A-30

RETAINER,SPARE TIRE ( 1) 150A-26

SCREW,CAP,HEXAGON H ( 1) 150A-1

SCREW,CAP,HEXAGON H ( 1) 150A-4

SCREW,CAP,HEXAGON H ( 1) 150A-20

SCREW,CAP,HEXAGON H ( 1) 150A-12

SCREW,CAP,HEXAGON H ( 2) 150A-21

SCREW,CAP,HEXAGON H ( 4) 150A-17

SPACER,RING ( 2) 150A-14

WASHER,FLAT ( 1) 150A-7

WASHER,FLAT ( 1) 150A-18

WASHER,FLAT ( 13) 150A-16

WASHER,FLAT ( 2) 150A-10

WASHER,LOCK ( 1) 150A-19

WIRE,ROPE ASSEMBLY ( 2) 150A-3

WRENCH,OPEN END ( 1) 150A-6
